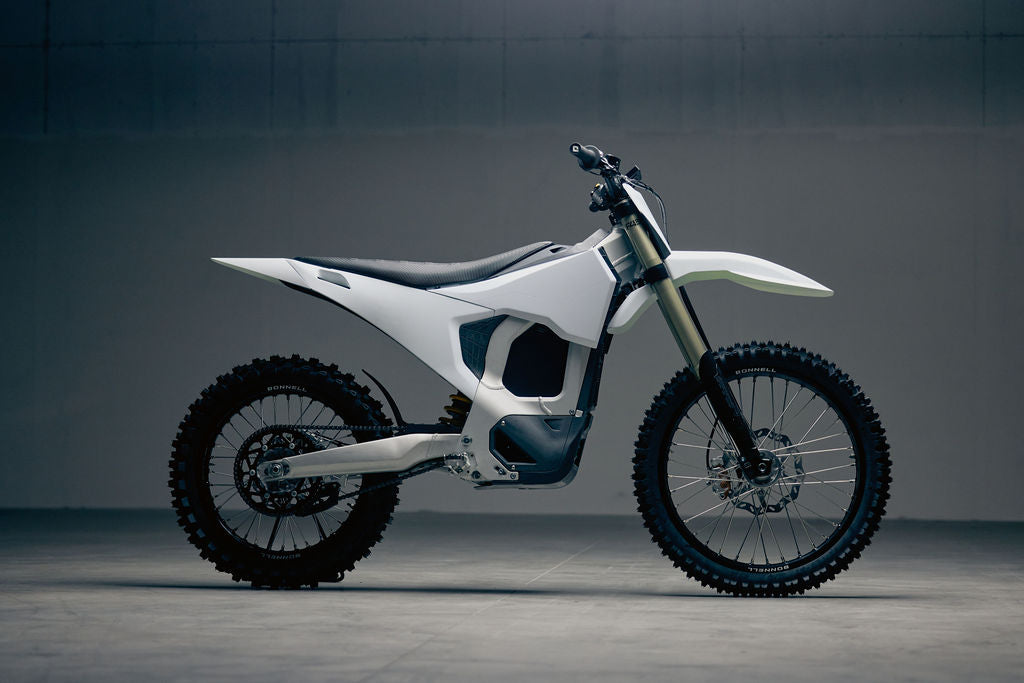

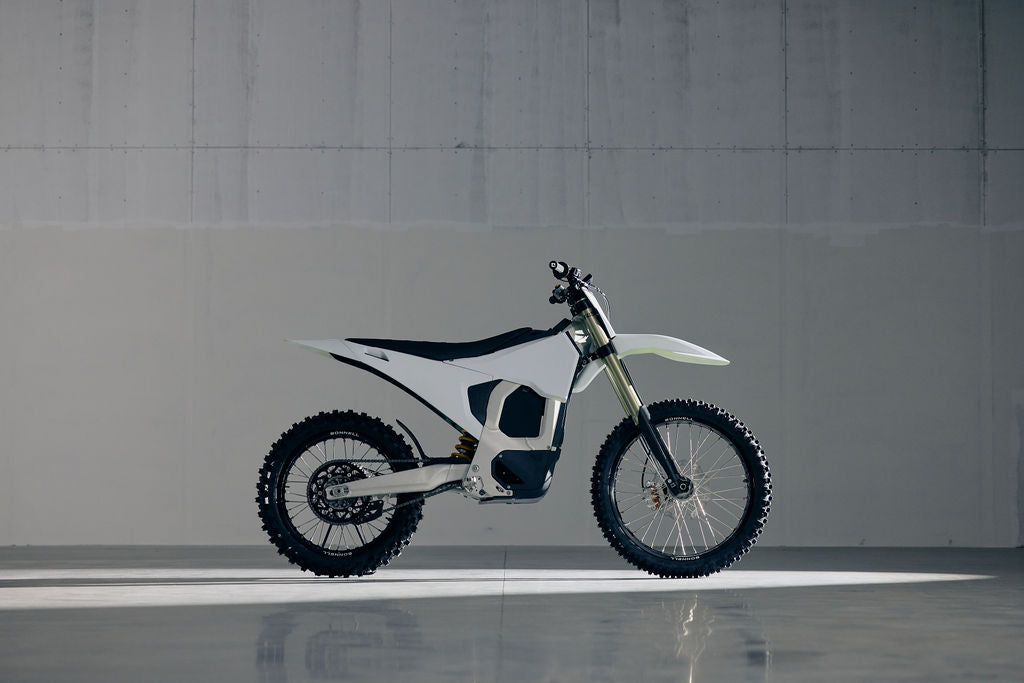

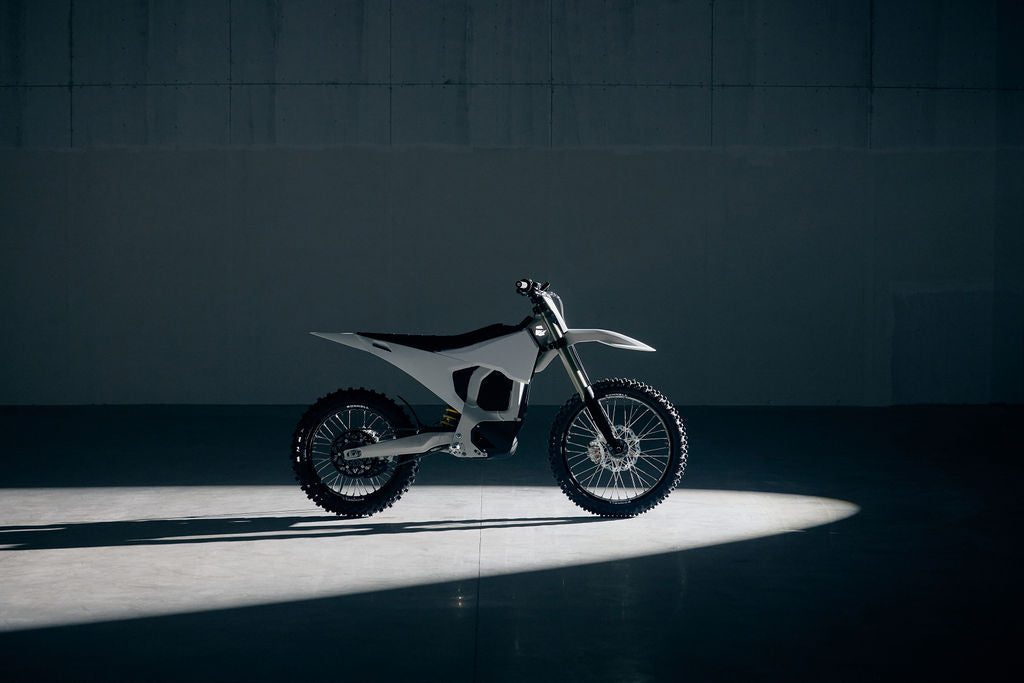

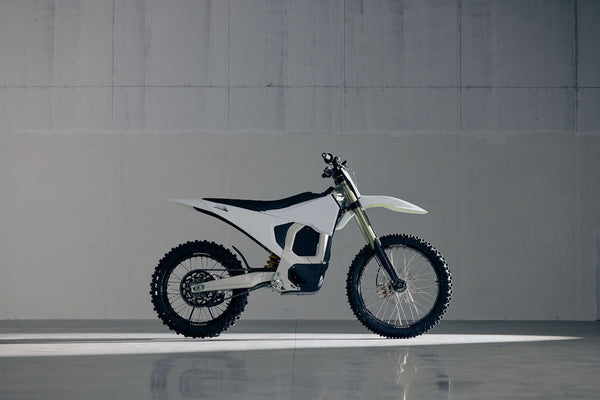

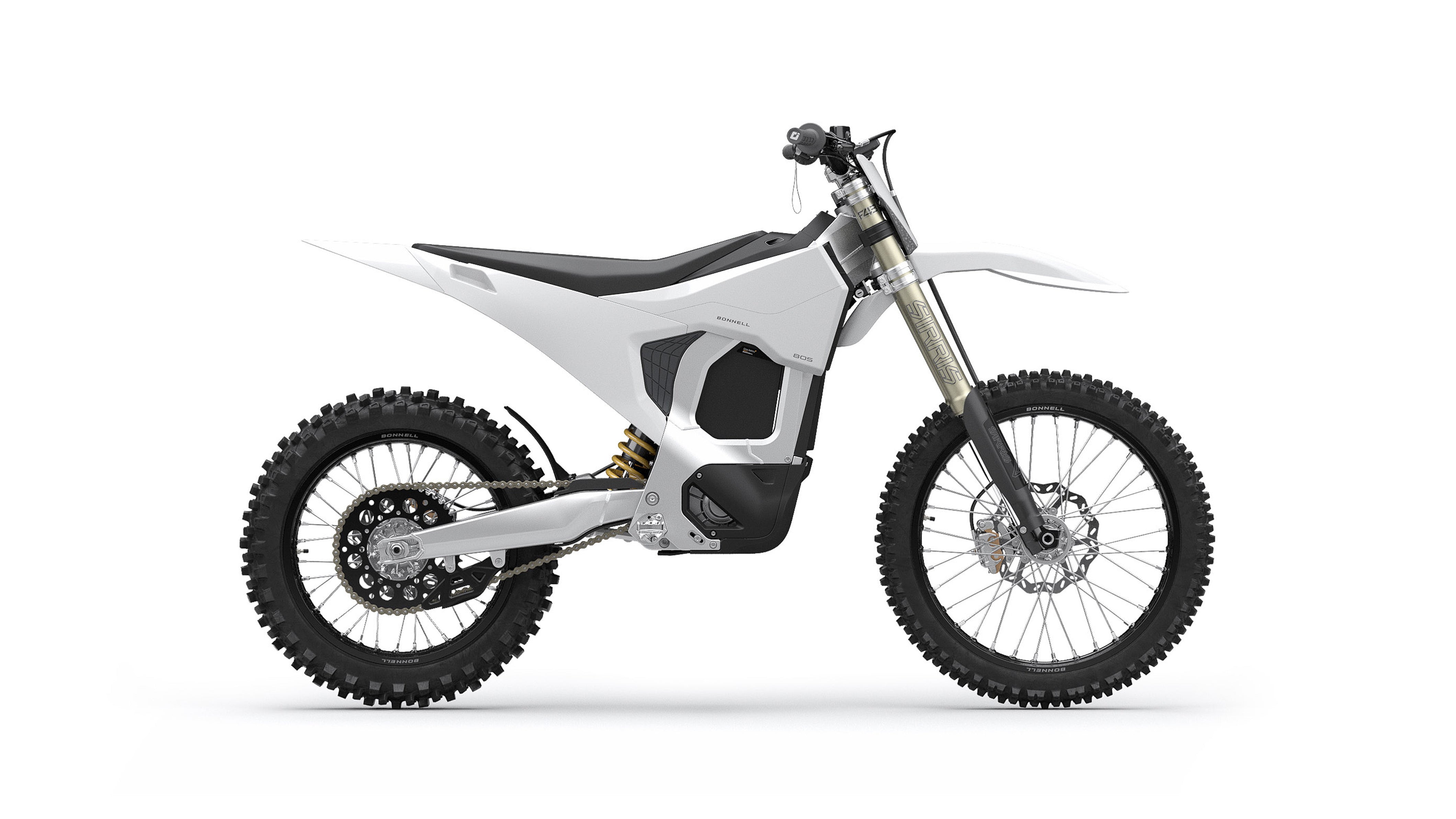

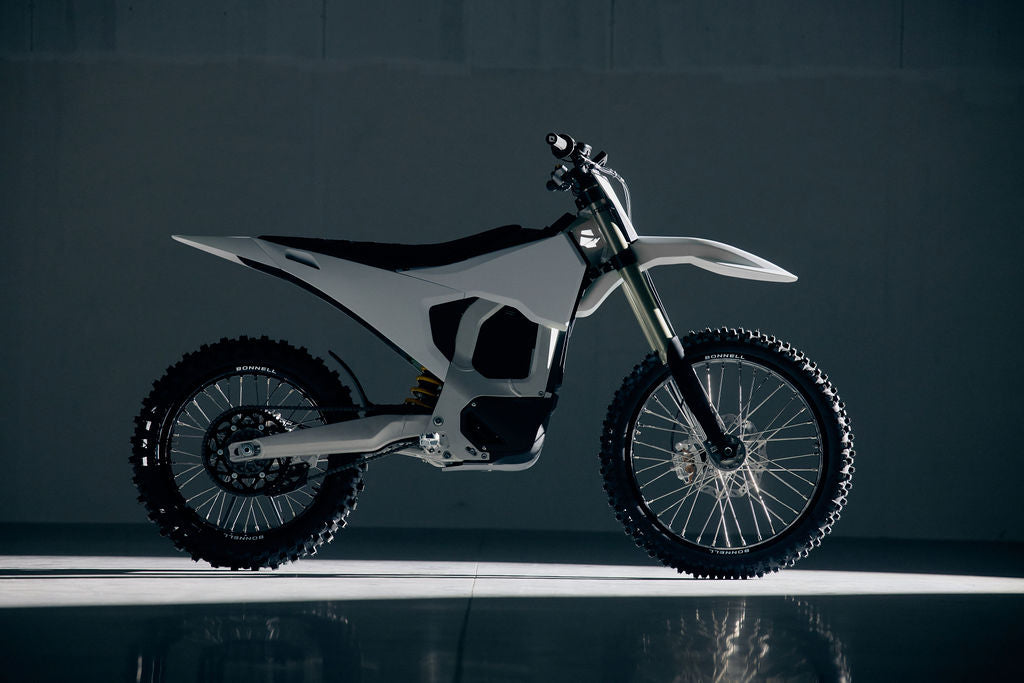

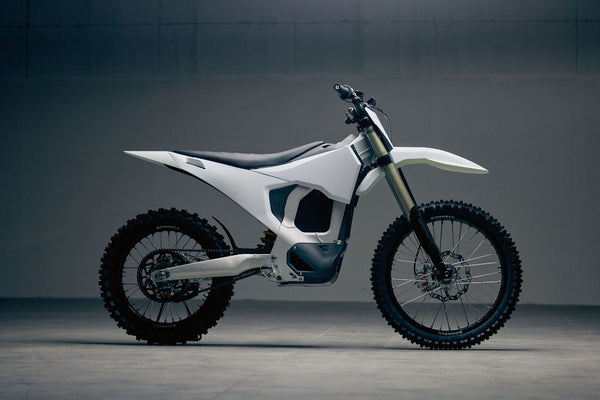

New Bonnell 805 - October ETA
CALL OR TEXT JR. (860) 471-0192
Only 19 in stock
Description

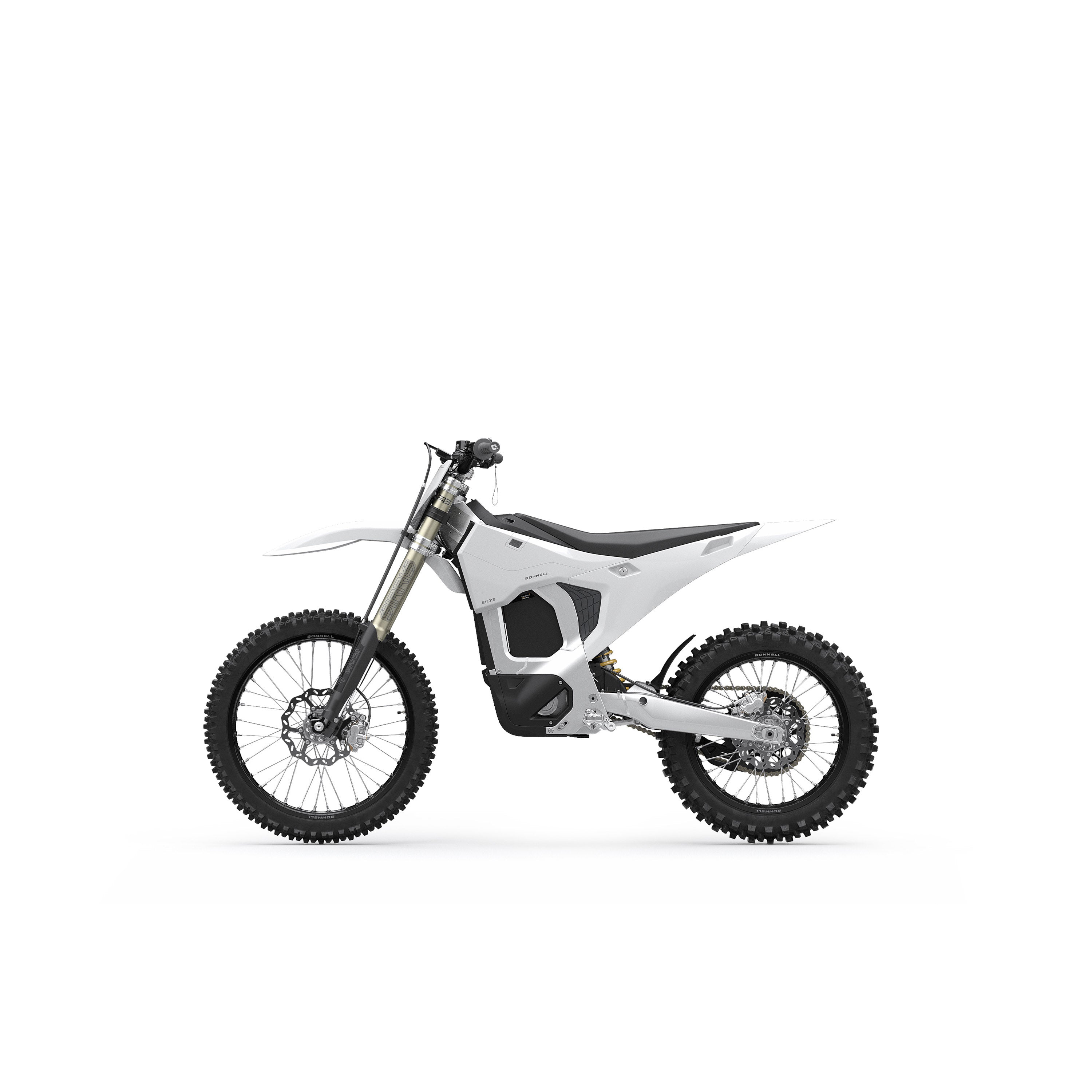

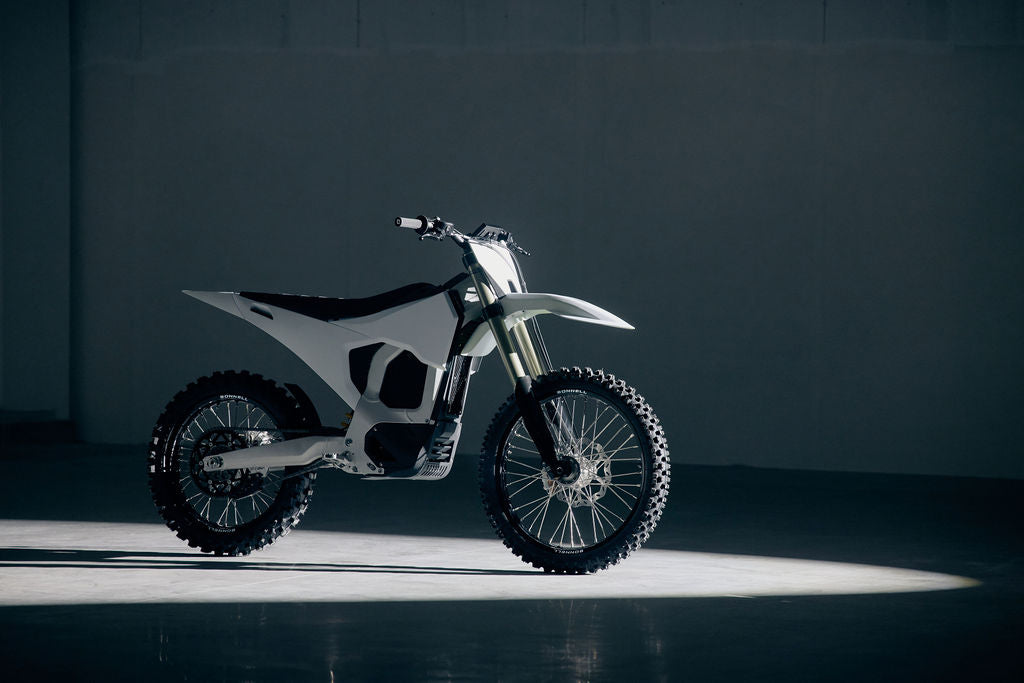

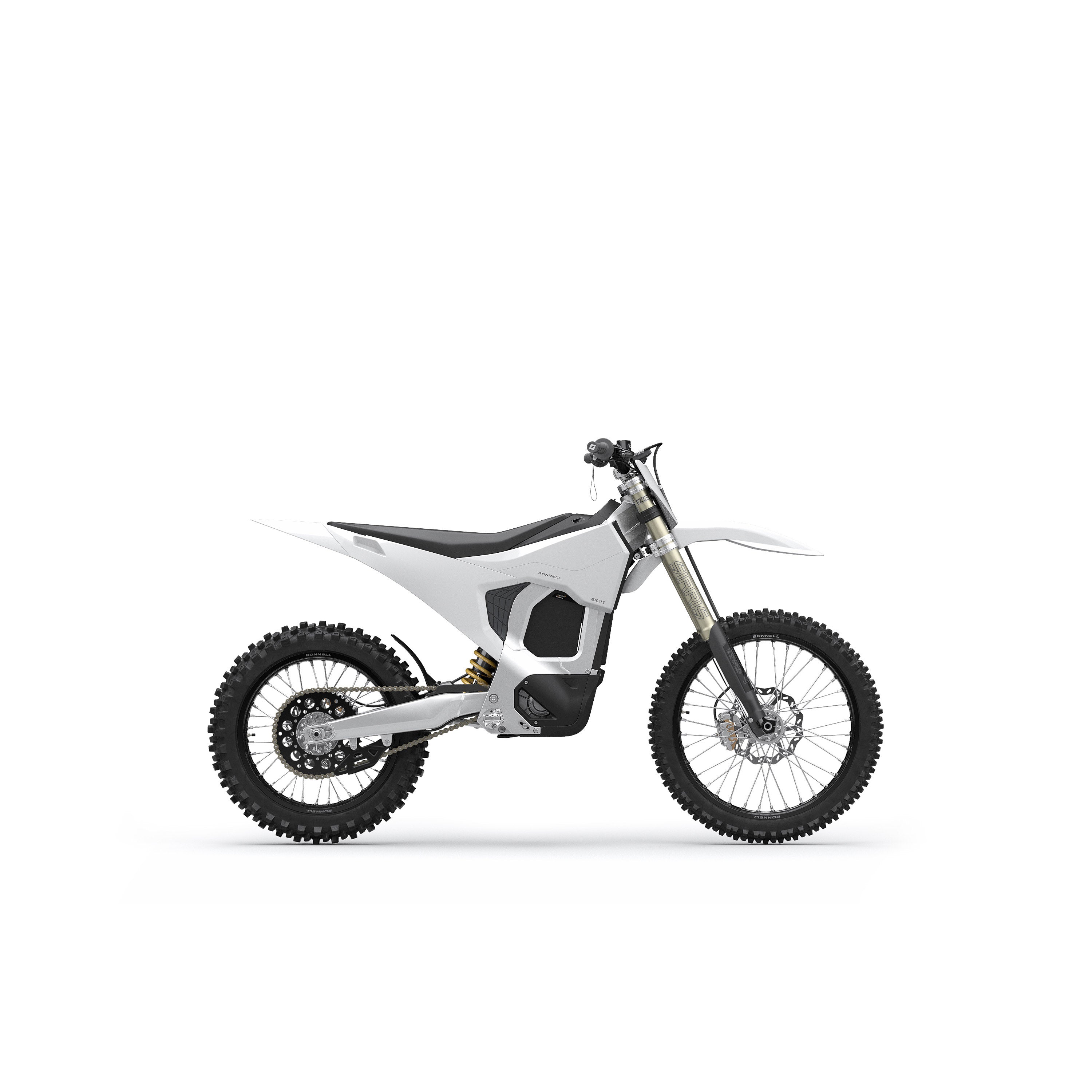

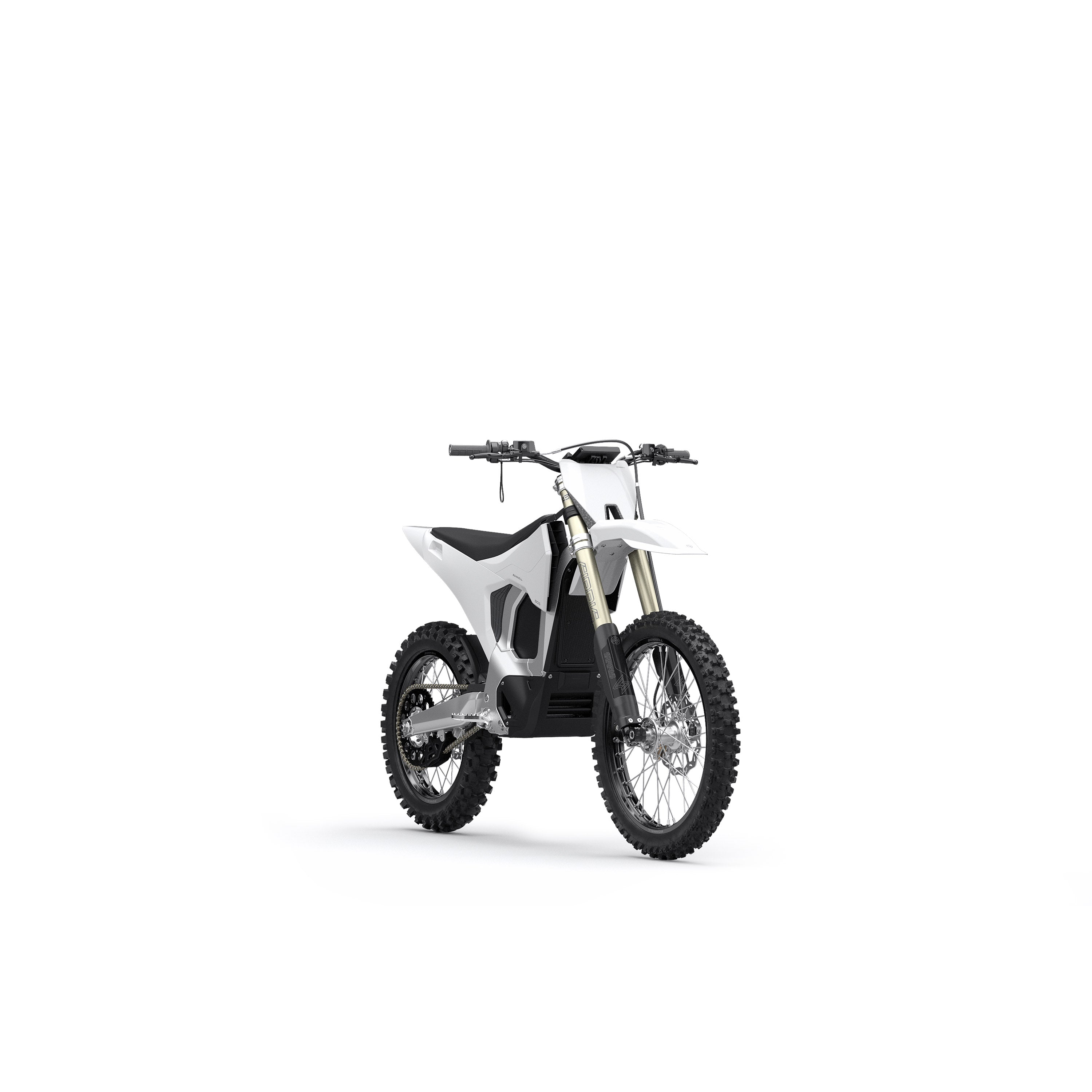

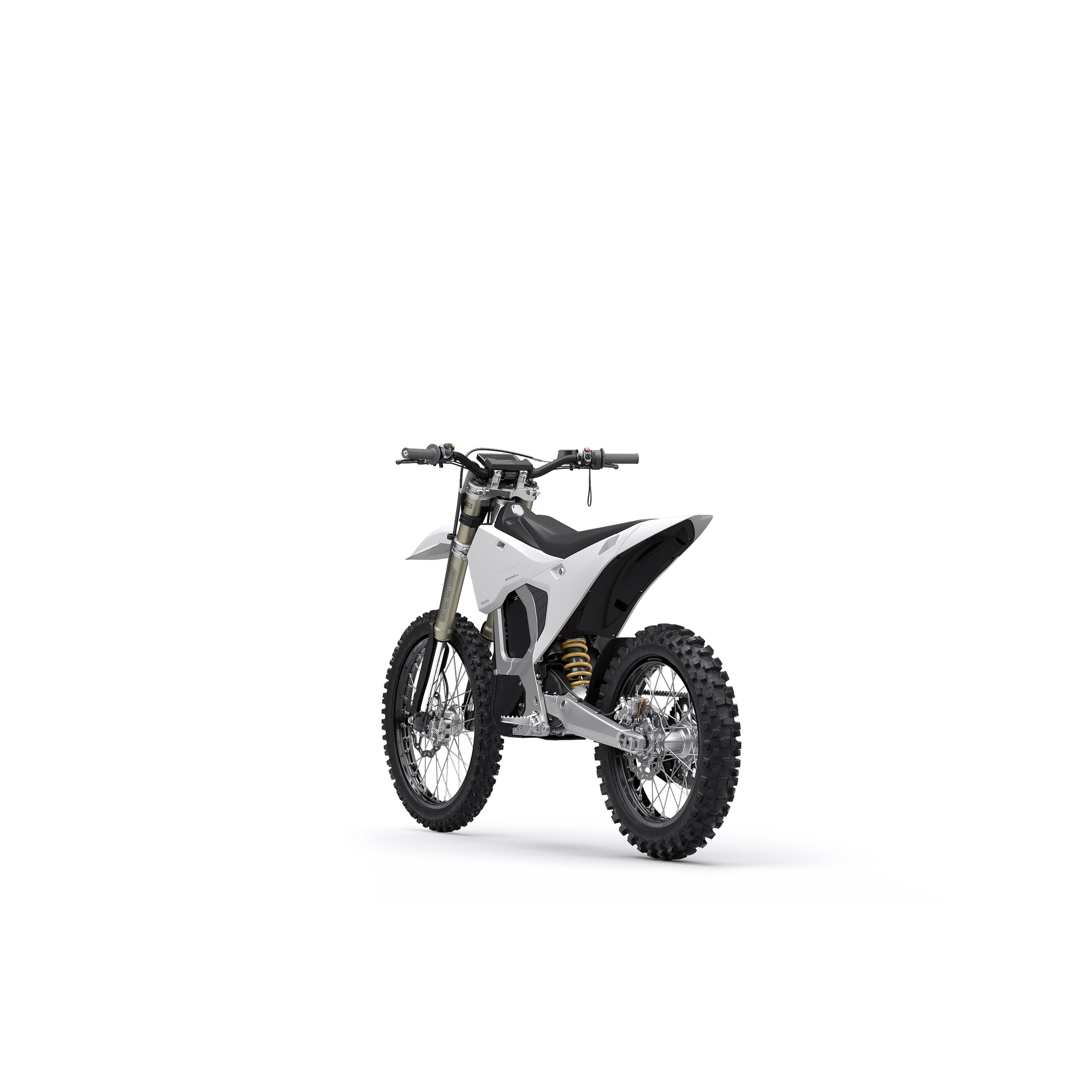

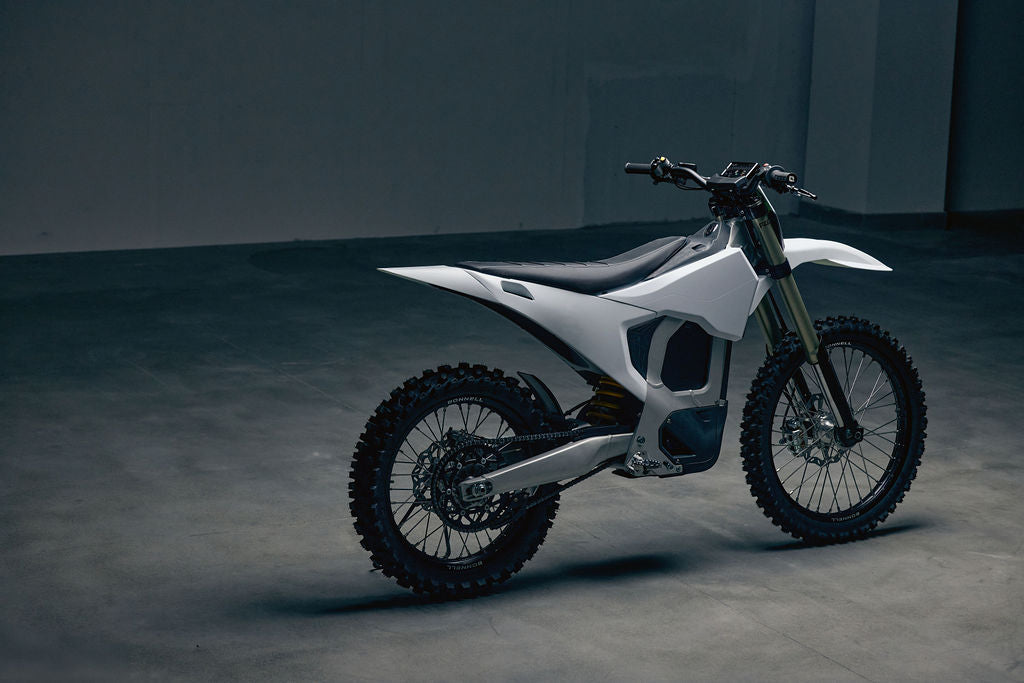

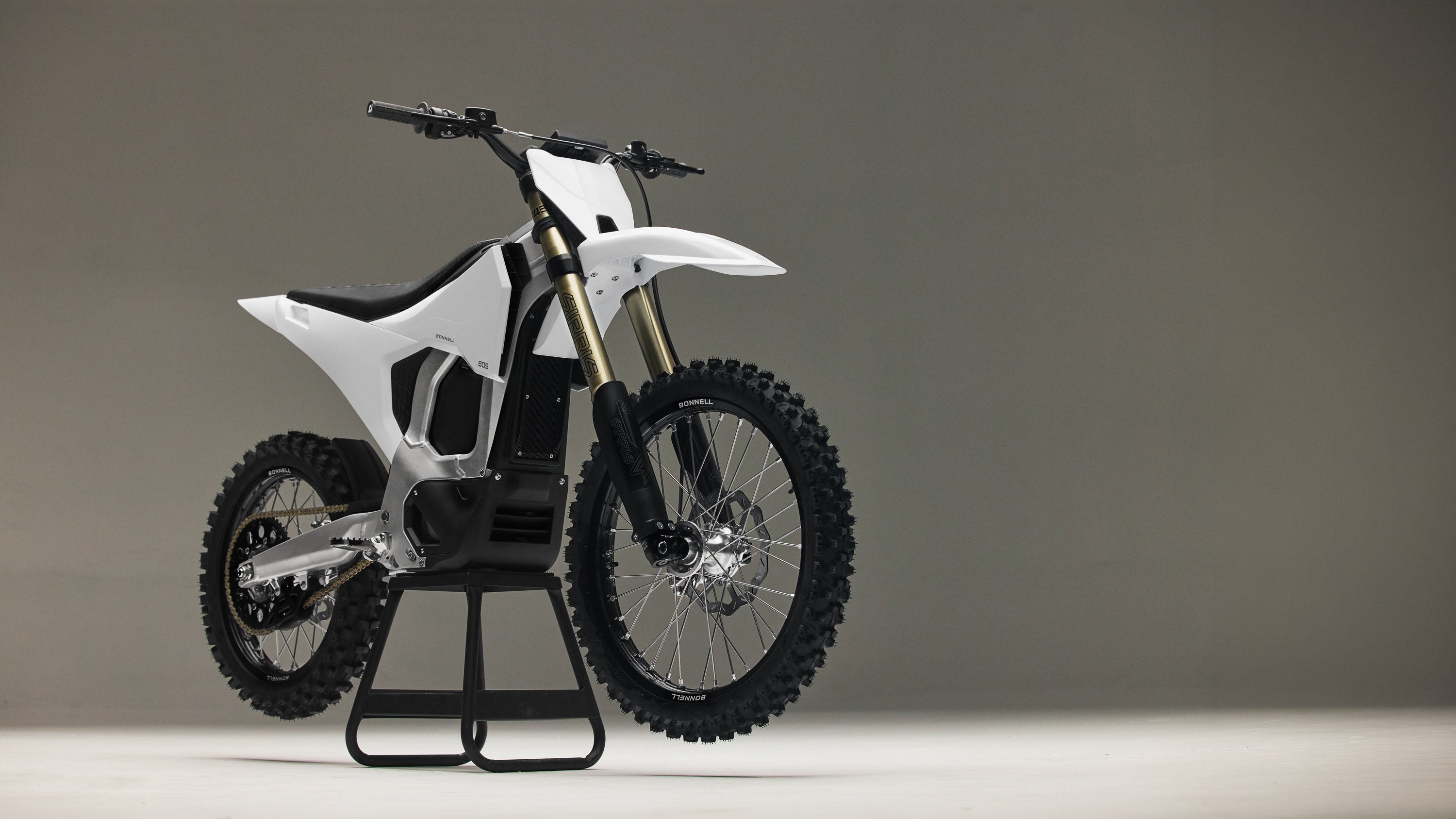

NEW BONNNELL 805
First available in October 2026.
Extremely Limited Allocation
Call/Text Jr 860-471-0192
NATIONWIDE DELIVERY AVAILABLE - This is not a crate service. Kaplan offers insured/enclosed white glove delivery with your bike FULLY PREPPED and ready to roll. ROLLS OFF TRUCK READY TO RACE!
SEND YOUR ZIP LOCATION FOR A SHIPPING QUOTE 860-471-0192. (FL $650, CA $950, TX $800, OH $600, Northeast Region $100-600).
Epic control. Amplified.
Serious power. Less weight.
More control over every part of the ride.
POWERTRAIN
56 hp |
805 Nm |
12,000 rpm |
ENERGY
SWAPPABLE BATTERY
LIGHT WEIGHT PLATFORM
218 lbs / 99 kg
Tuned for Epic.
Different riders. Different goals. One bike built to adapt.
From pushing the limits to finding your own, the 805 RX can be tuned to meet you wherever you ride.

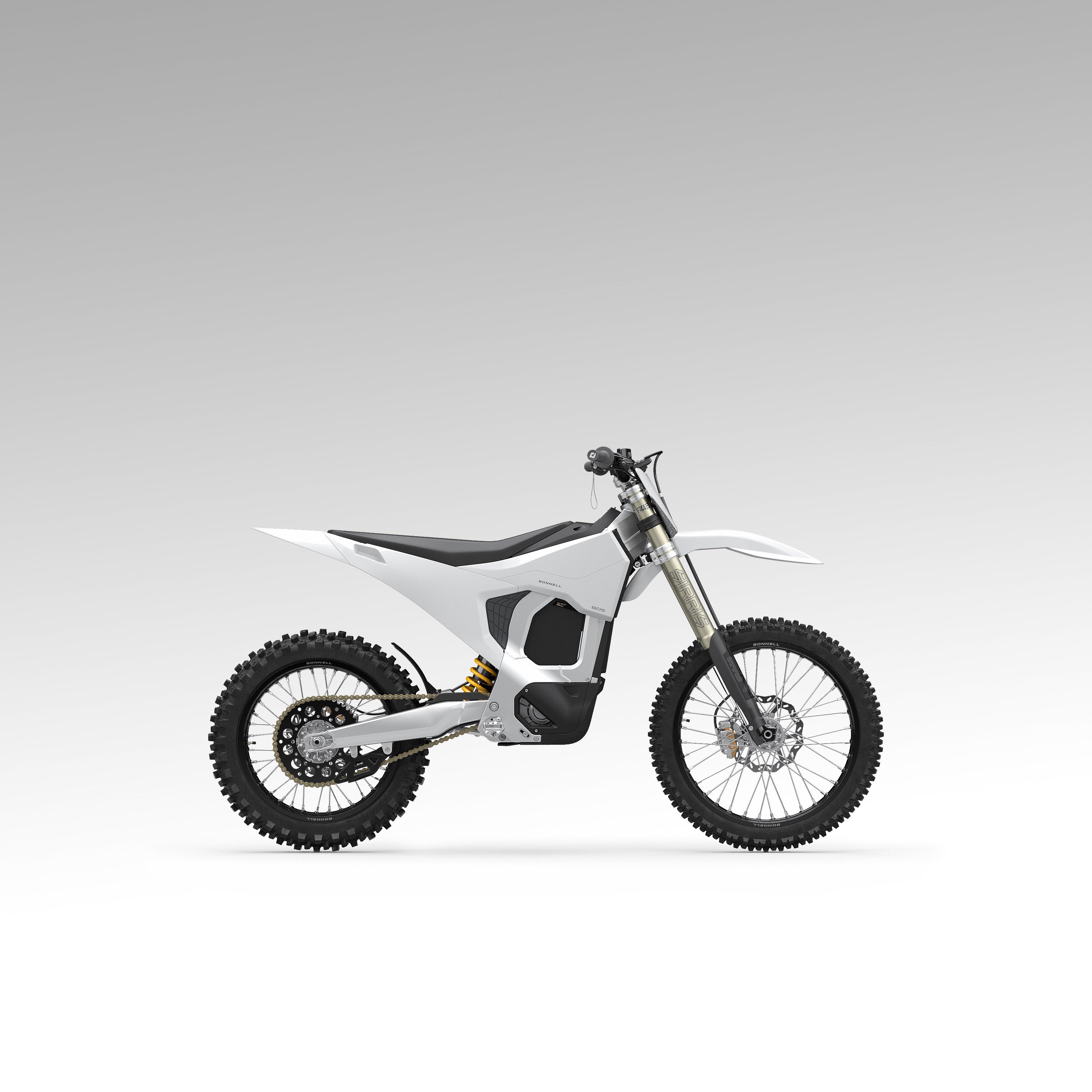

Lightness Changes Everything.
218 pounds. 56 horsepower. Built to move with you, not against you.

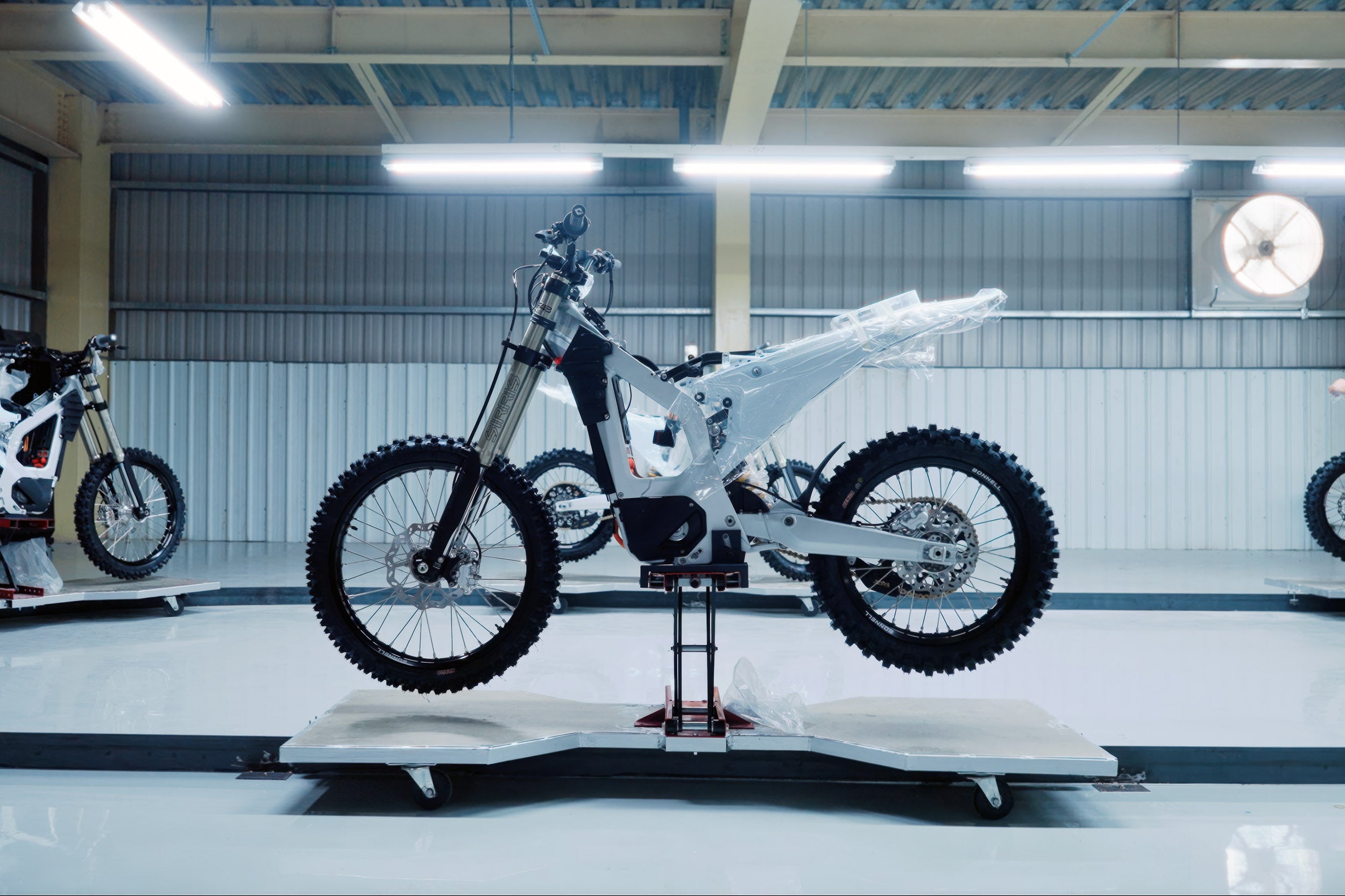

Forged Aluminum Frame & Hydroformed Swingarm
Forged Aluminum Frame + Hydroformed Swingarm
805 RX
Strength, shaped differently.
Forging and hydroforming let us create complex, purpose-built shapes while keeping weight down and strength high. The result is a lightweight chassis engineered to take serious abuse without carrying unnecessary mass.
Control, your way.
Explore the engineering, technology and
rider-focused features behind the 805 RX.
Pulse Control System
805 RX
App Tuning
805 RX
Electronic Finger Lever
805 RX
Walk Mode + Hill Hold
805 RX
Five Ride Modes + Reverse
805 RX
Parental Control
805 RX

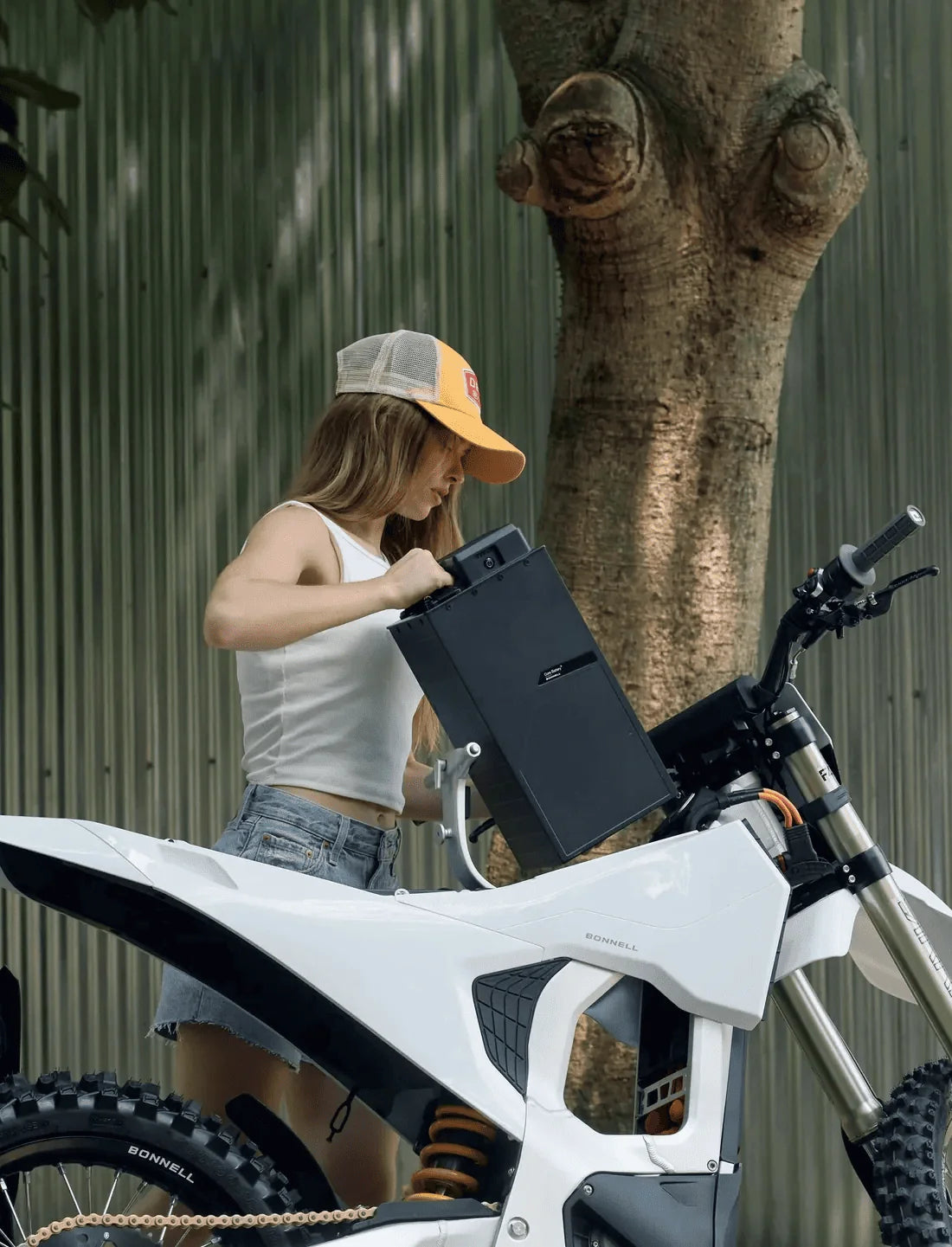

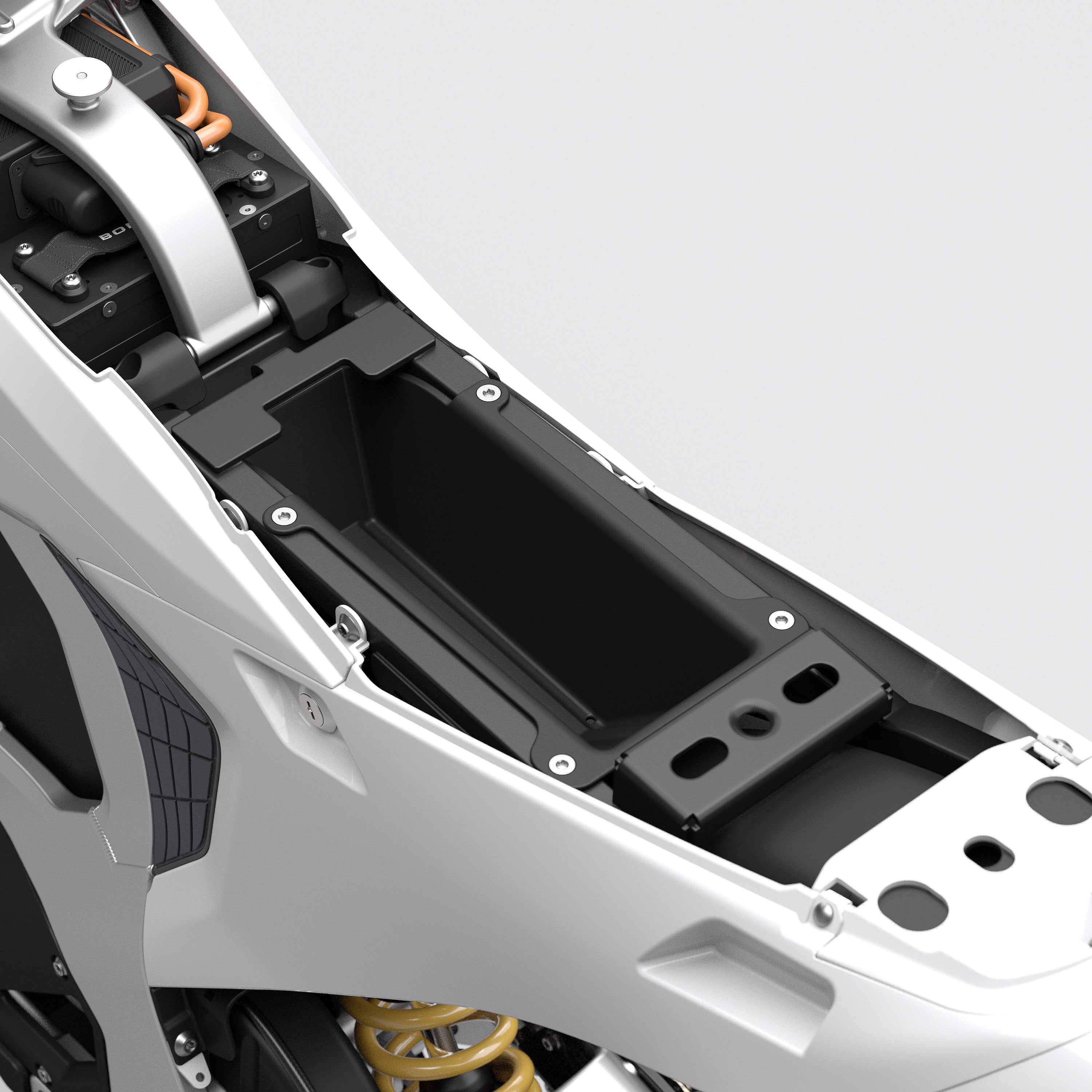

Go All Day.
Swappable battery. Built to keep you riding.
3.9kWh / standard
4.7 kWh / optional
On or off the bike
More Control,
More Commitment.
When the terrain gets technical, Traction Control keeps the rear wheel hooked up so you can keep pushing.
Programmable per ride mode, on or off with one click.

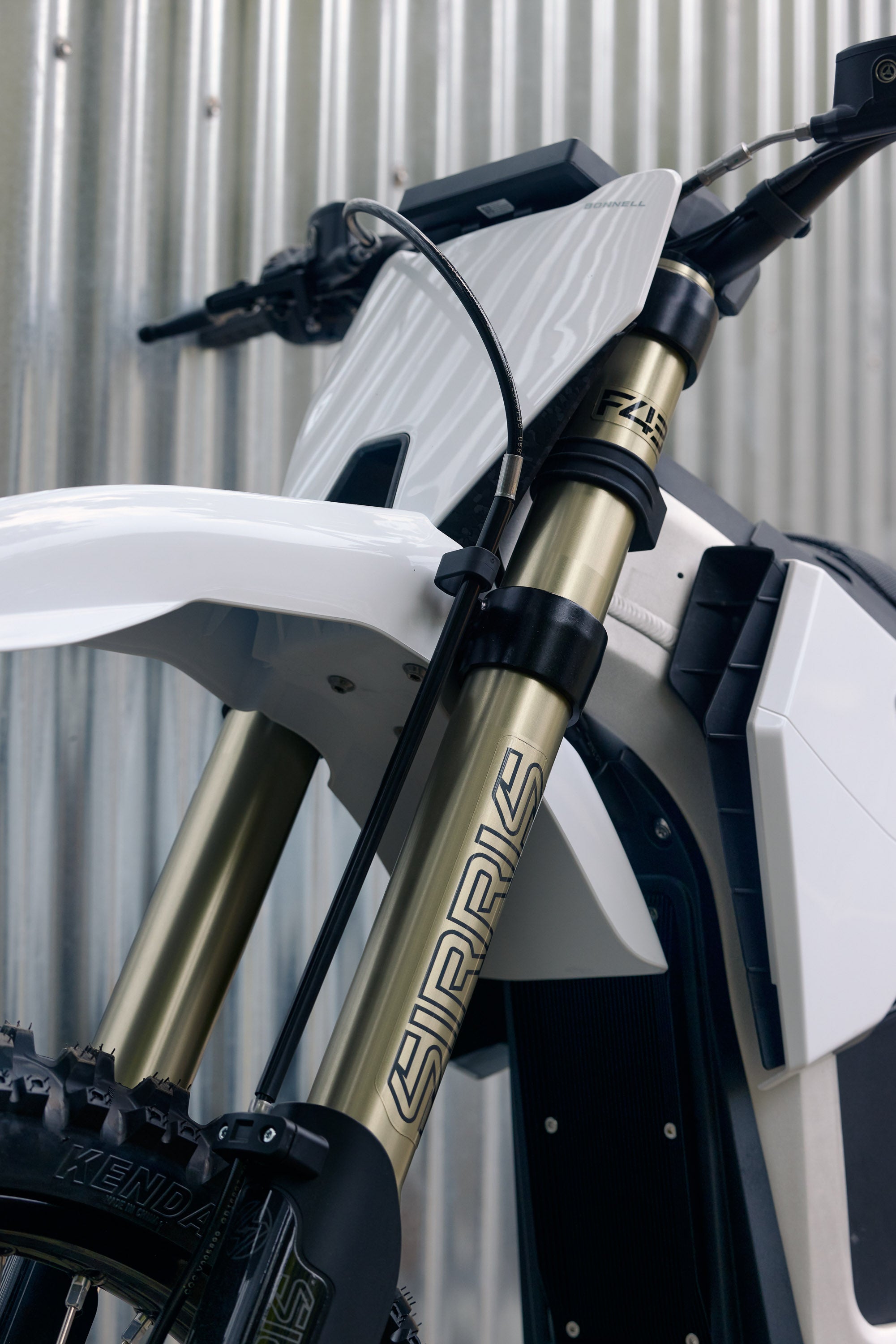

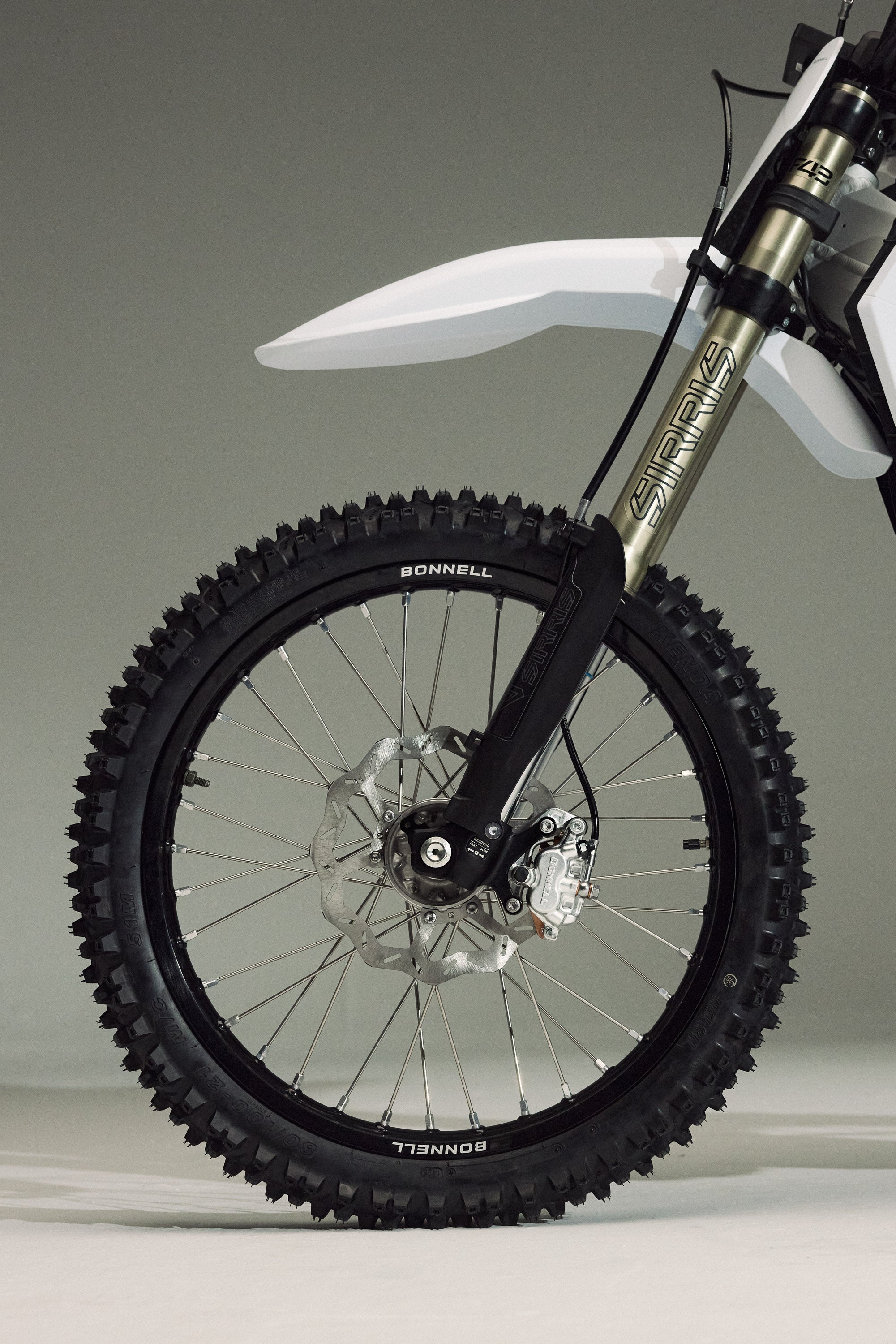

Sirris Suspension
805 RX
Developed specifically for the 805 RX through two years of testing with Bonnell across Trail, MX and Hard Enduro. Engineered around the bike, not adapted from an existing platform.
Fork / Shock - Sirris F43 / R46
Travel - 245 mm (9.6 in) front & rear
External Adjust - Compression · Rebound · Fork height · Handlebar position · Spring rate · Preload
Internal Tuning - Deeper tuning available for a personalized setup
High-flow damping circuits, low-hysteresis components and a stiff chassis deliver responsive tracking, small-bump sensitivity and the support for bigger hits, harder braking and higher speeds.
Premium performance straight from the factory, with the adjustability, durability and serviceability to evolve with the rider.
Fast, Flexible Charging
805 RX
Workshop Ready Toolkit
805 RX

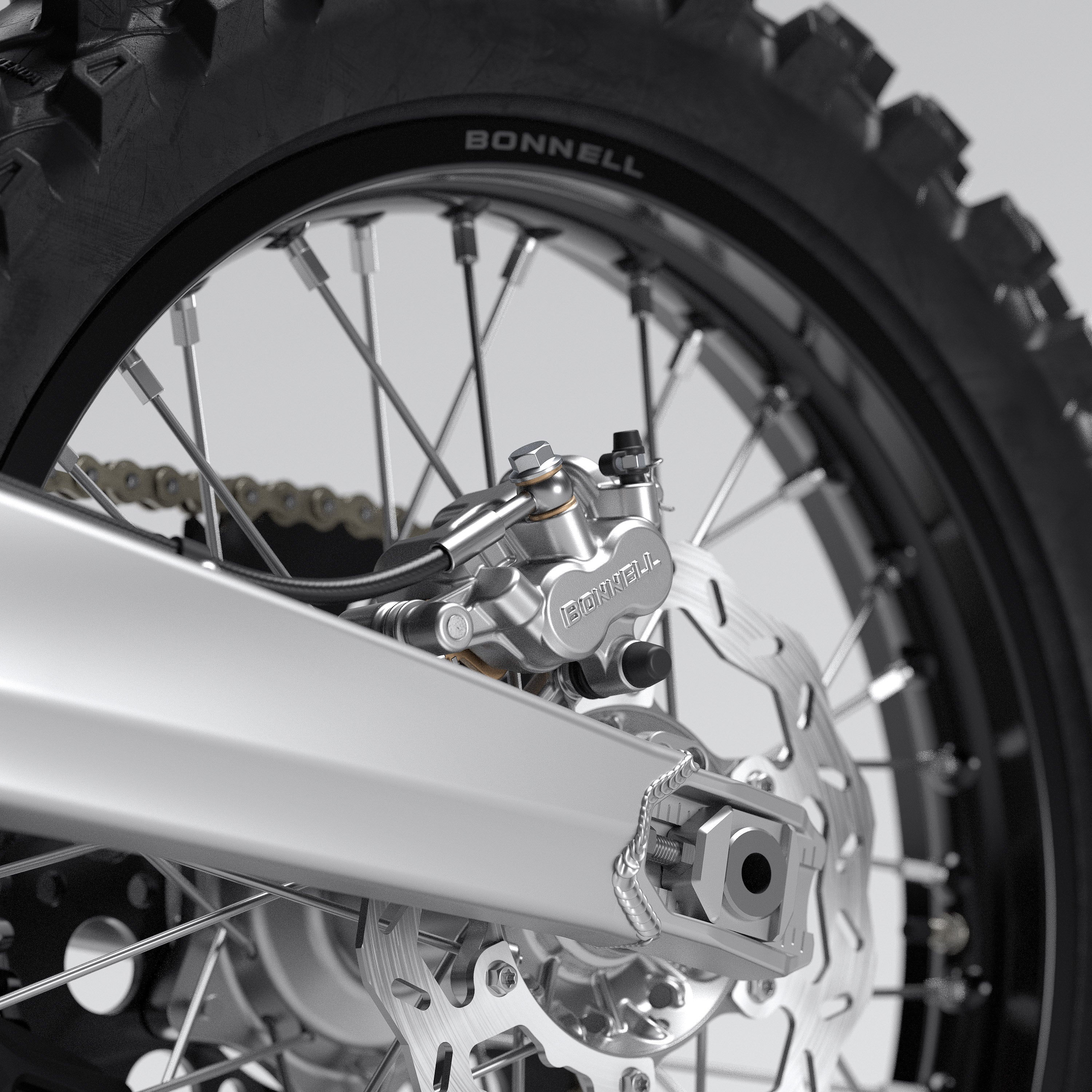

Bonnell Forged Brakes
805 RX

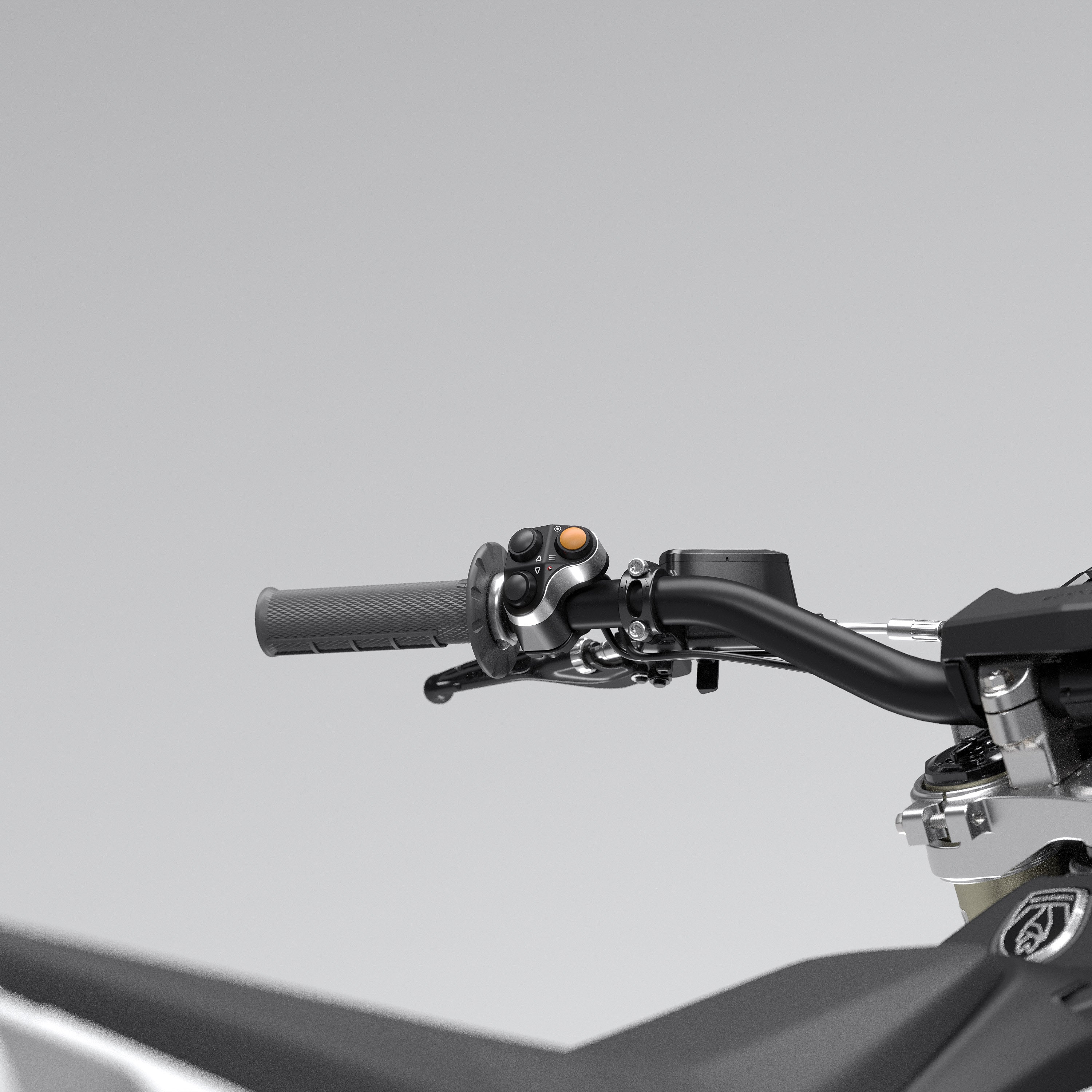

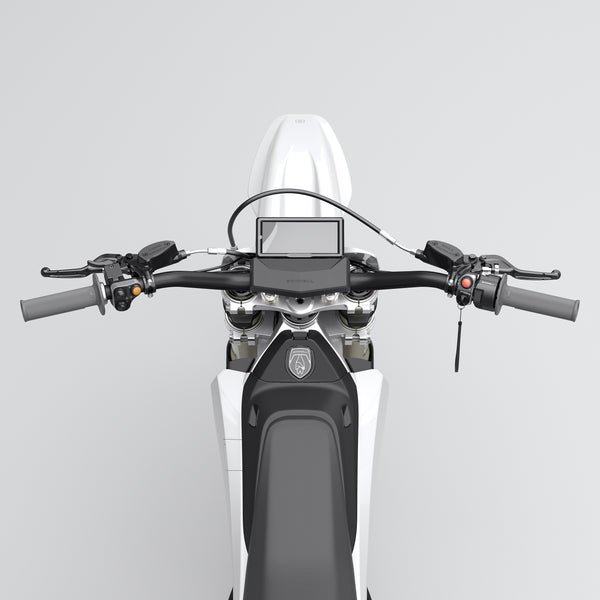

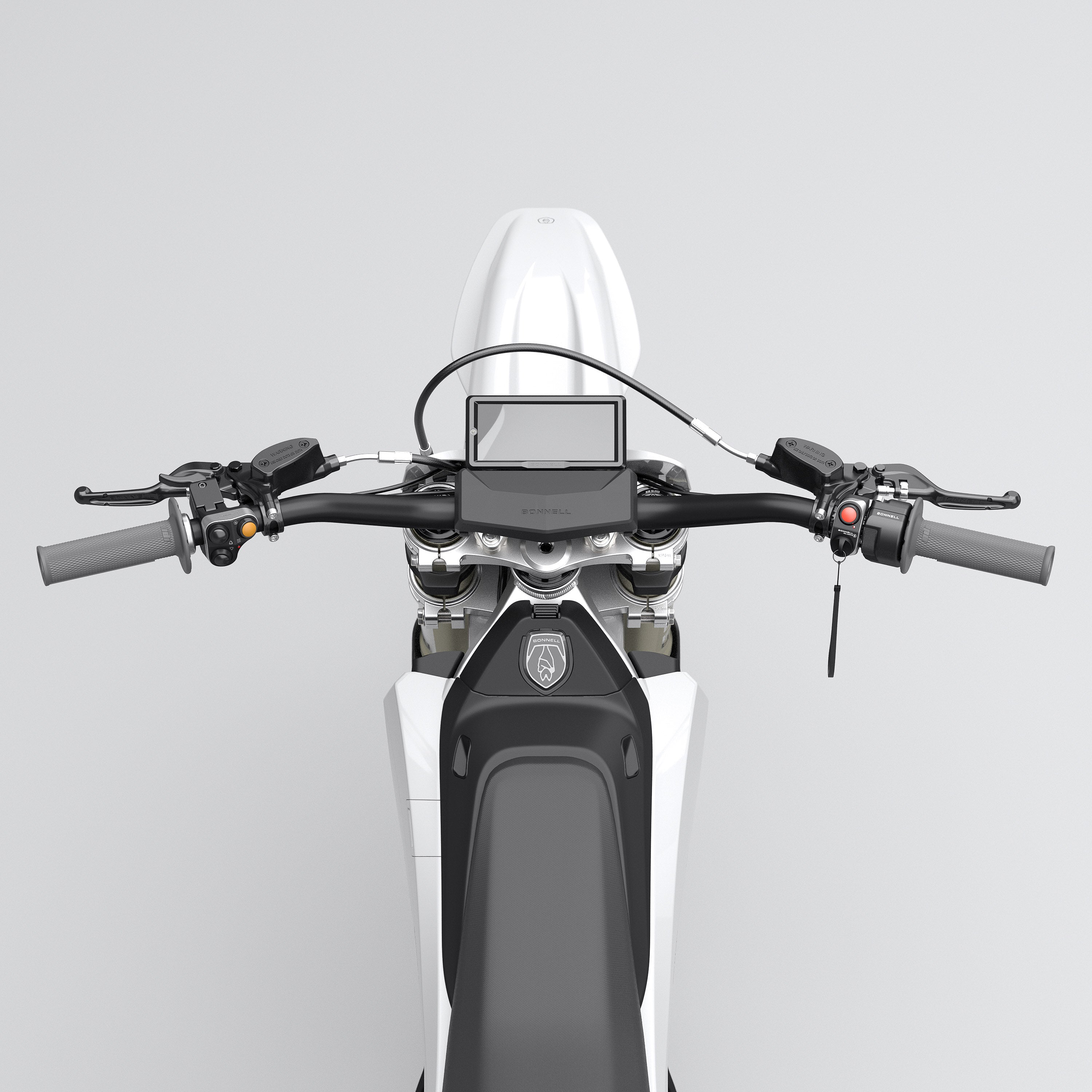

Pulse Control System.
Everything within reach.
The Pulse Control System puts the 805 RX’s key functions at your fingertips, so you can stay focused on what’s ahead.

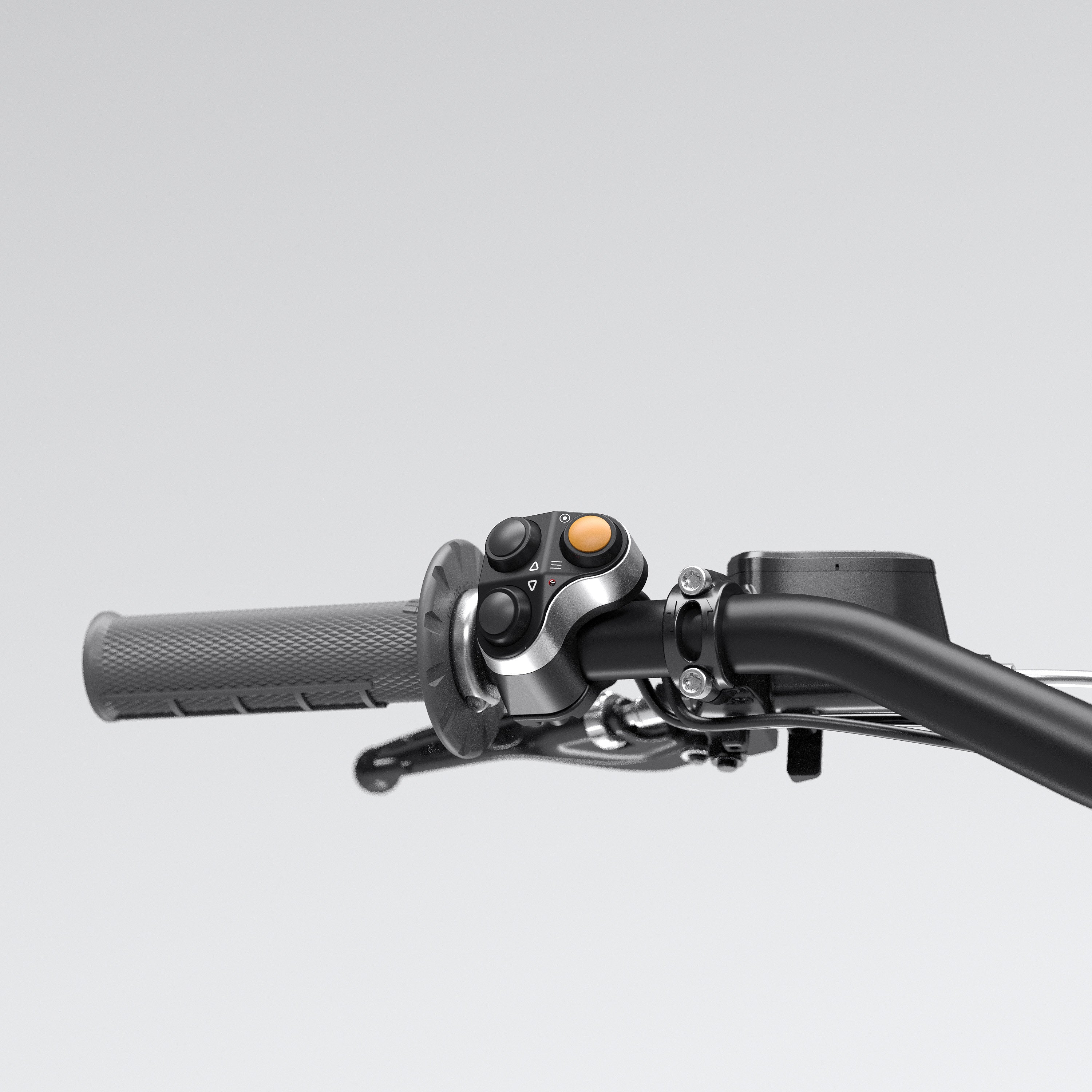

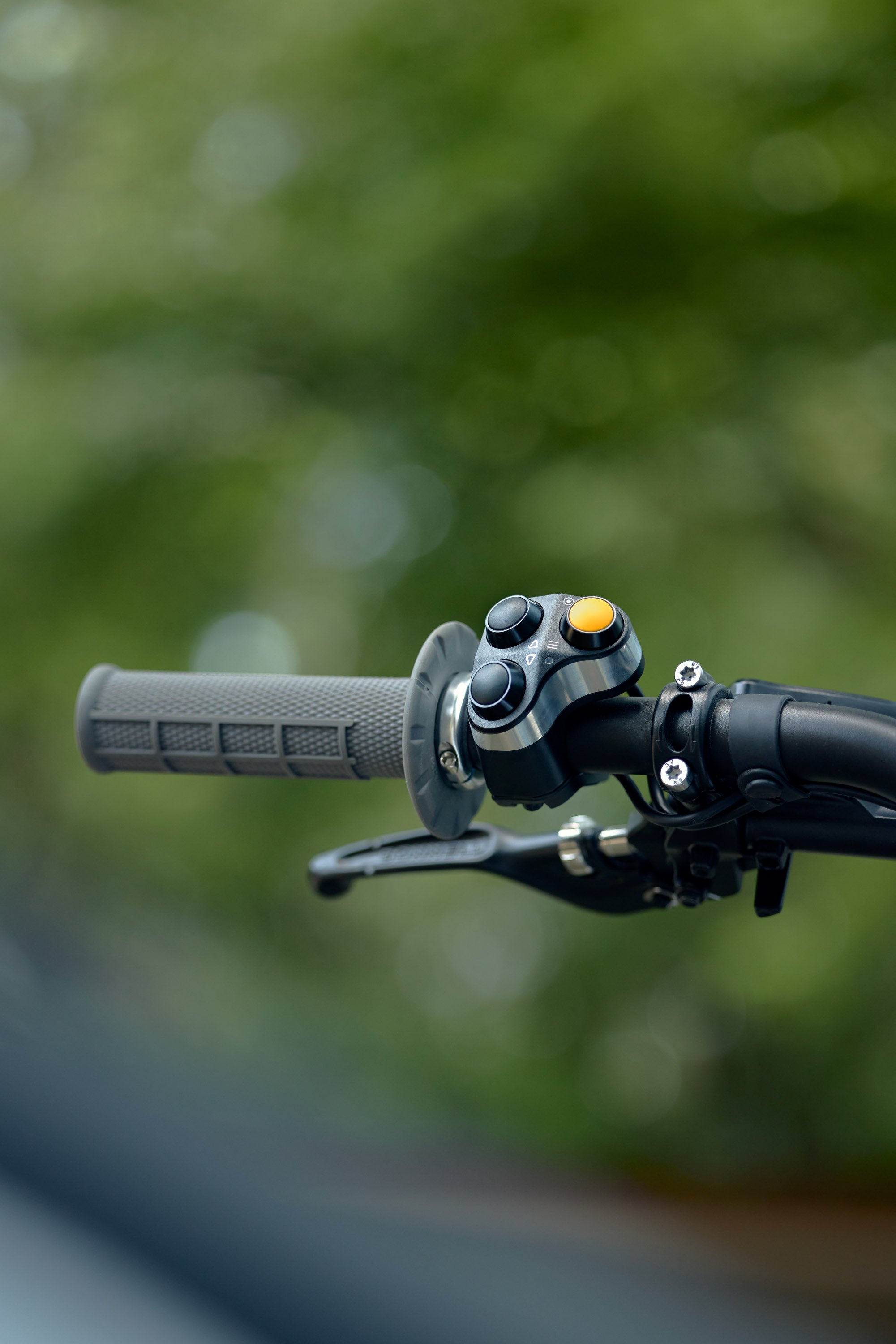

Pulse Control System
Our patented finger lever is a miniaturized throttle for anything that needs variable input: e-Clutch, variable regen, or a backup emergency throttle.
It also toggles your special functions on and off, Boost Mode, Speed Limit, Traction Control and Wheel Lift Assist, every one programmable per ride mode.

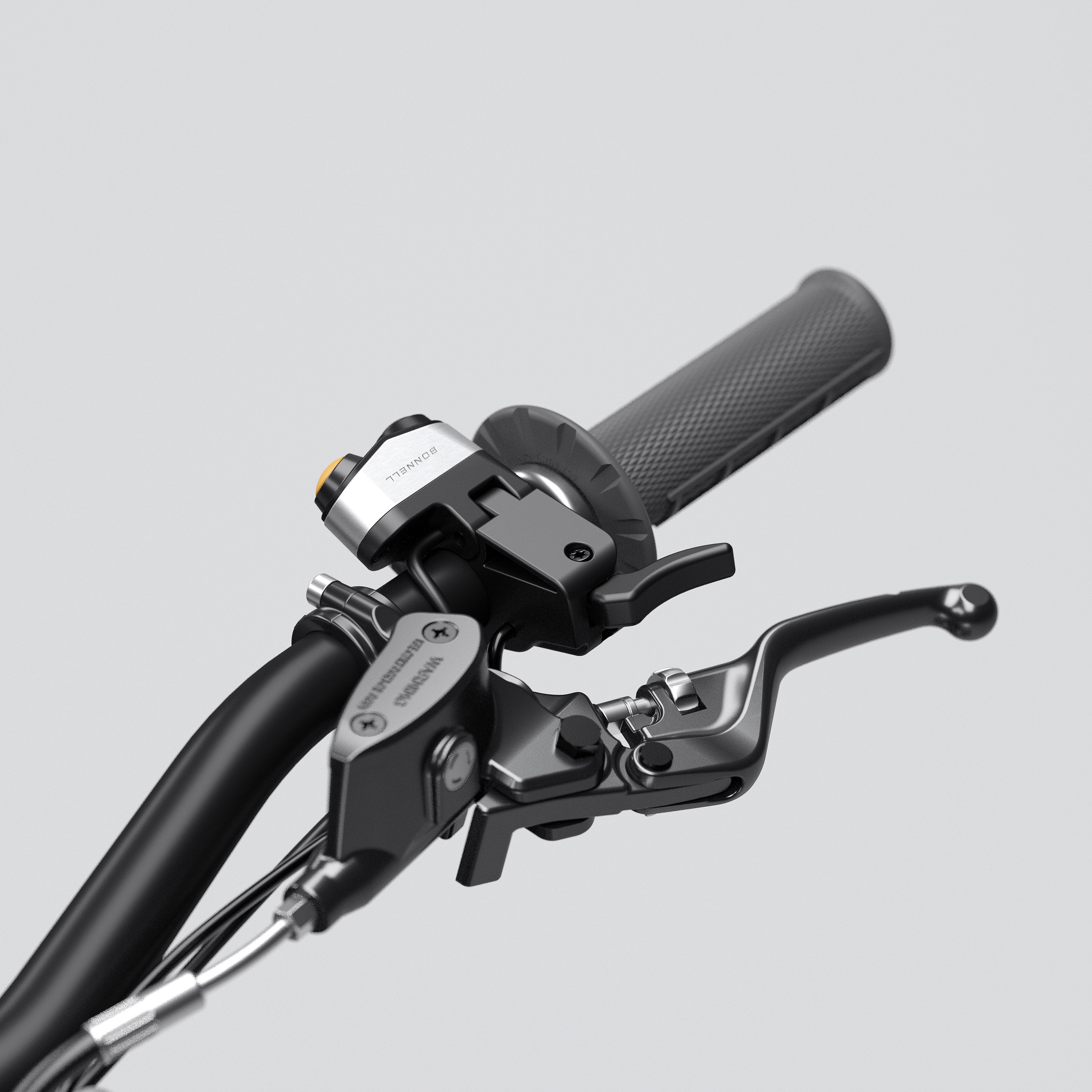

Electronic Finger Lever
Our patented finger lever is a miniaturized throttle for anything that needs variable input: e-Clutch, variable regen, or a backup emergency throttle.
It also toggles your special functions on and off, every one programmable per ride mode.

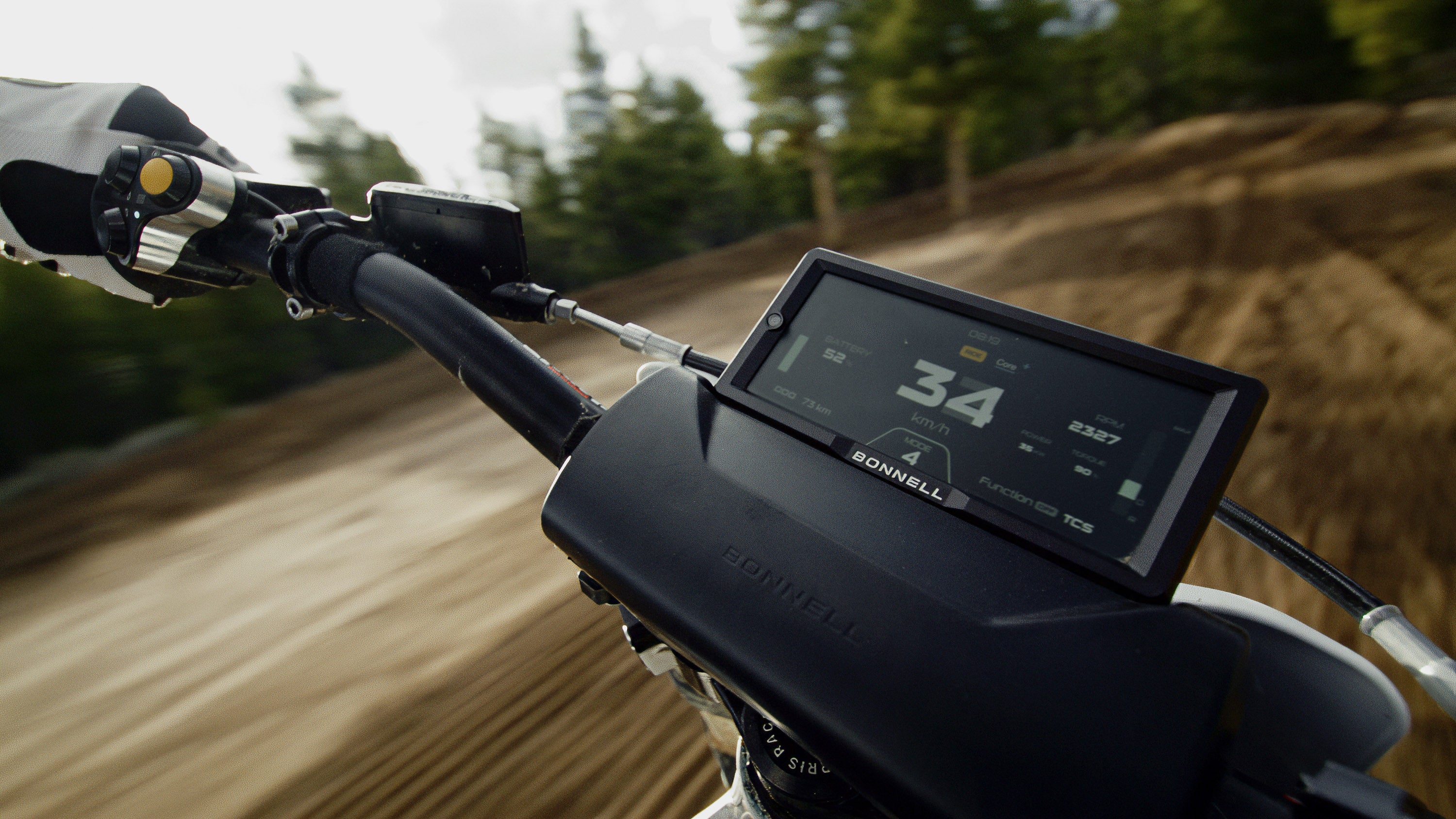

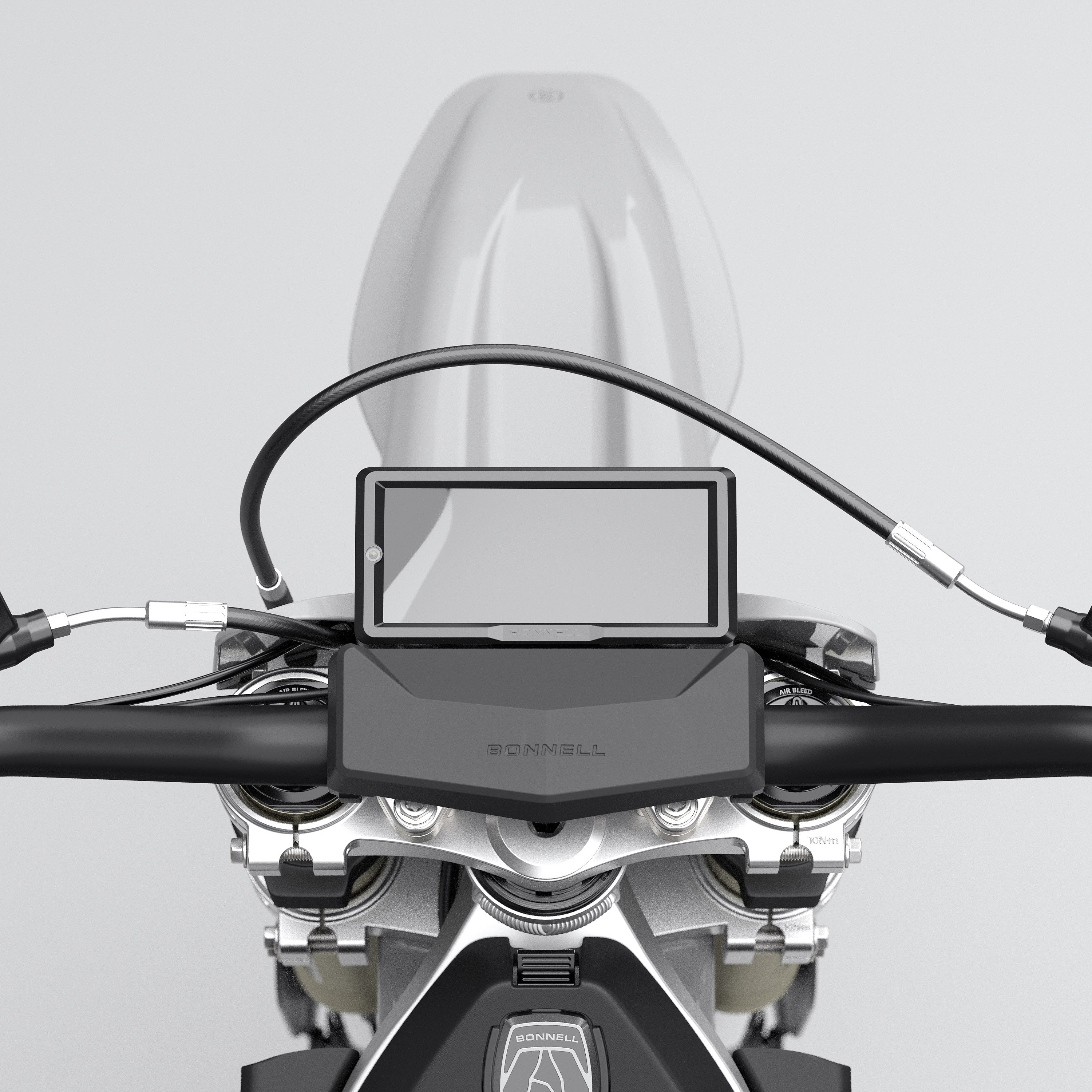

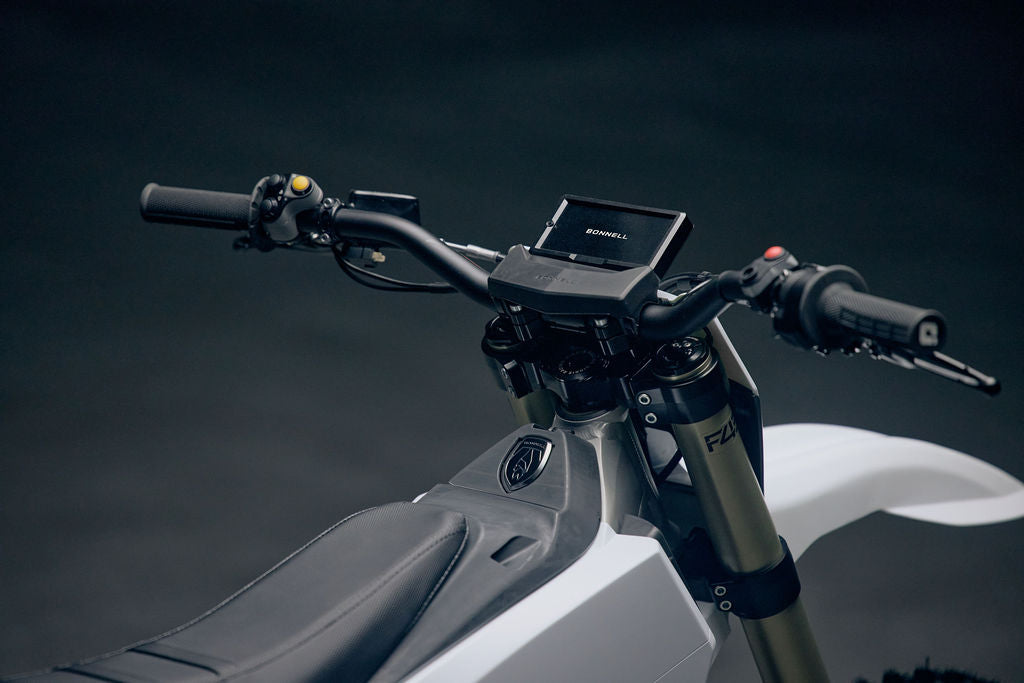

Display
Three custom layouts, Precision, Performance and Race, so you choose how your ride info reads in real time, with live data like system temperatures.
Cycle through ride and trip data plus bike and maintenance info, with a built-in lap timer, all from the Pulse controller.

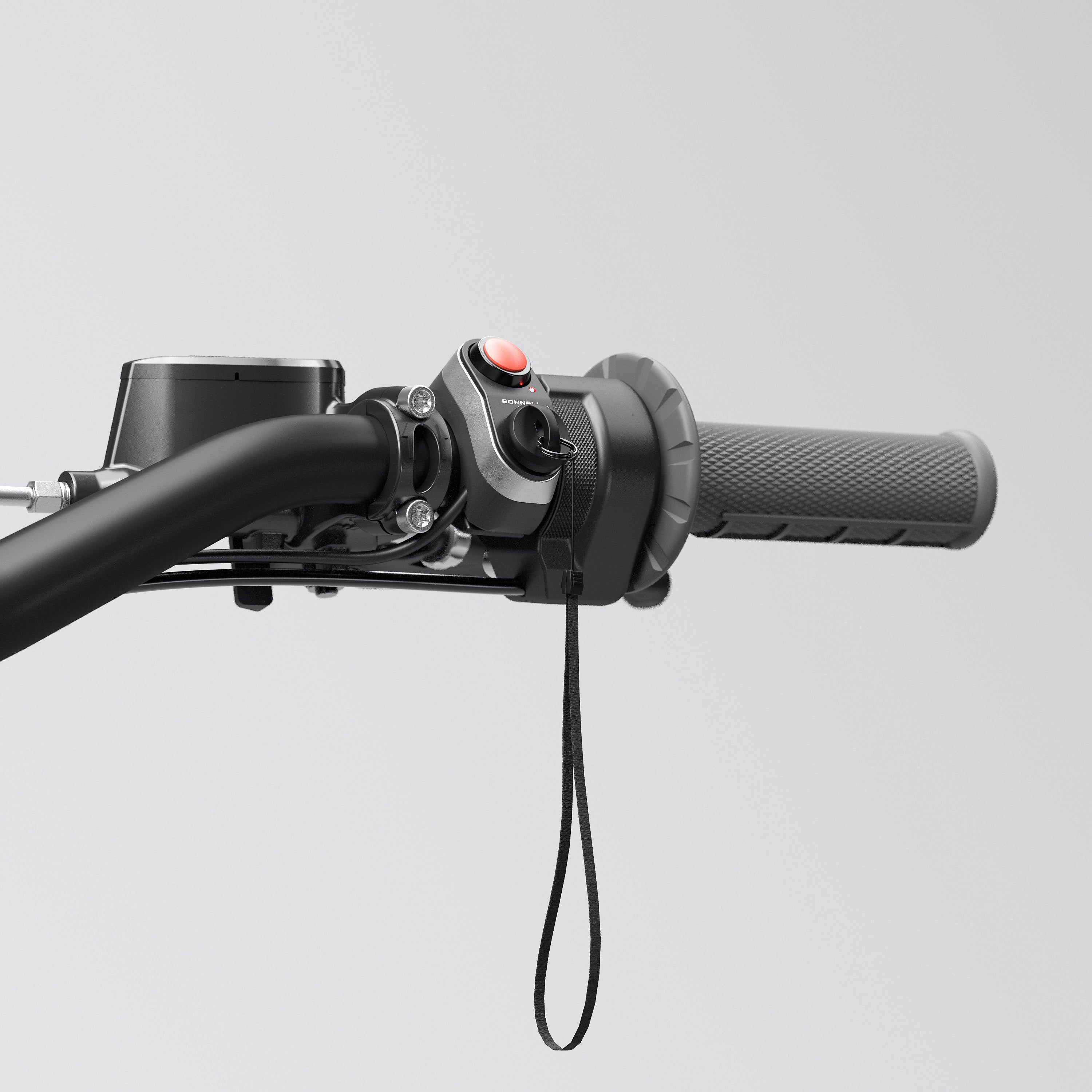

Kill Switch
A pull cord for closed-course sessions. Pull it and power is cut at the battery BMS, not just the throttle signal, so the bike is genuinely safe.
Snap it back on when you are ready to ride. Required on most tracks, smart everywhere else.
