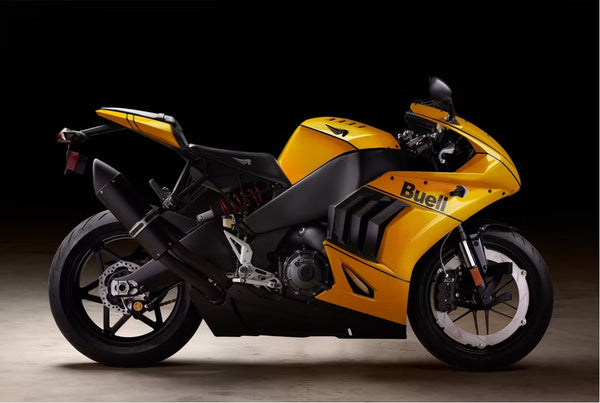

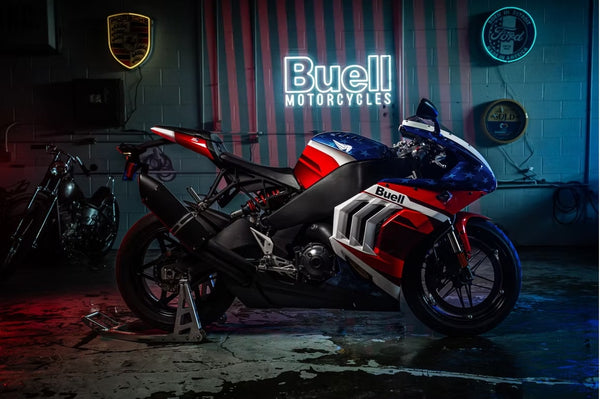

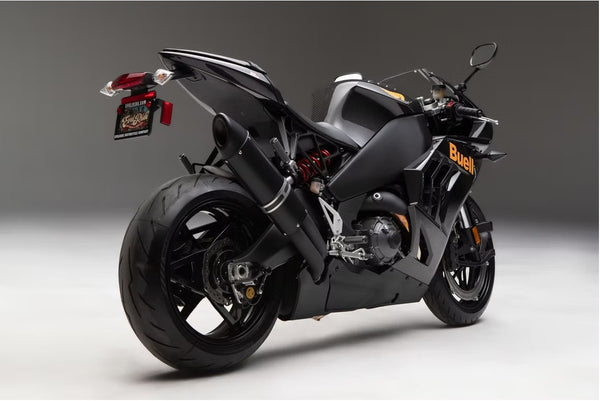

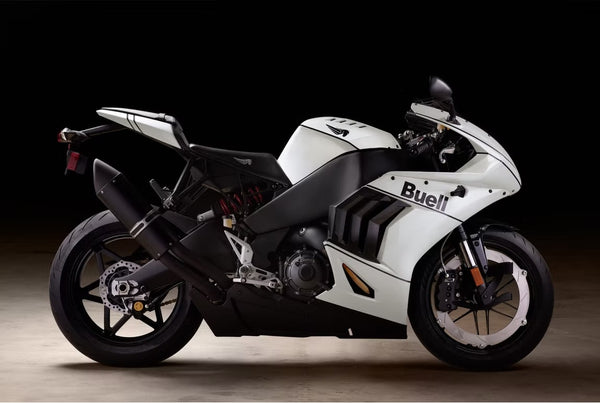

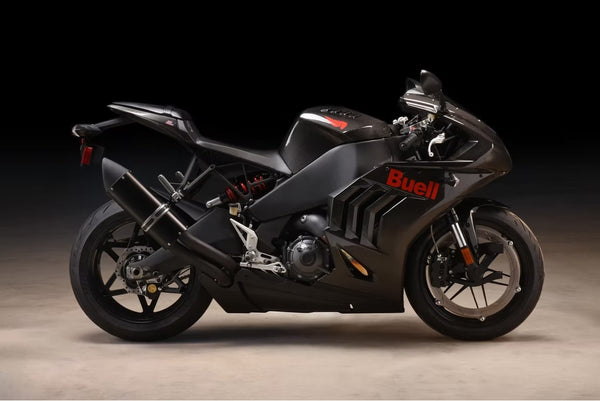

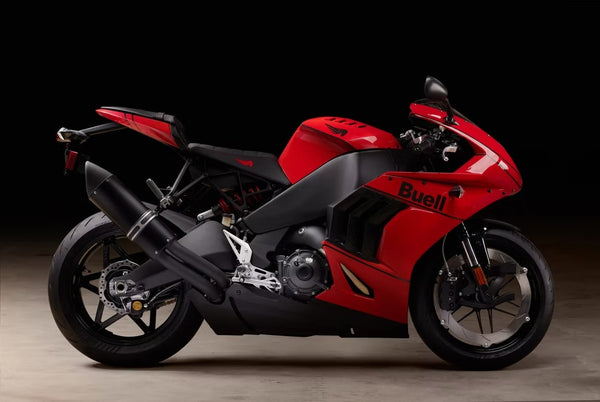

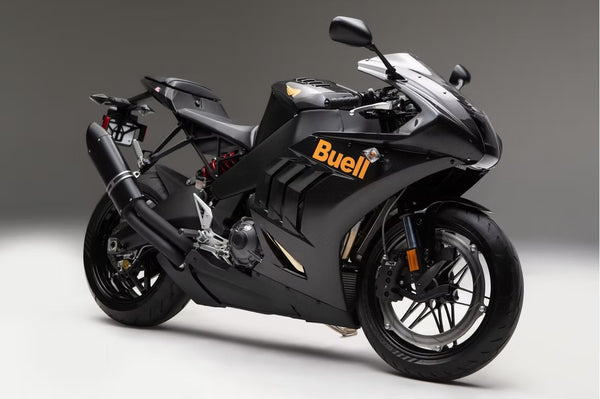

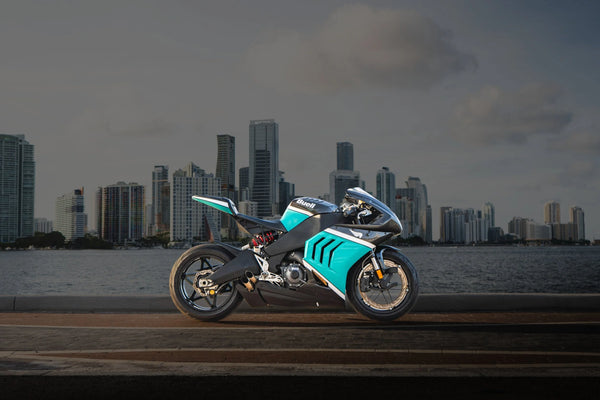

HAMMERHEAD 1190 SPECIFICATIONS

Engine Type - ET-V2: 72° V-Twin, Liquid Cooled, Four-Stroke

Bore x Stroke - 4.17in x 2.66in (106 x 67.5mm)

Displacement - 72.6 cu in (1190cc)

Compression Ratio - 13.4 : 1

Fuel Delivery - Electronic fuel injection with 2 port injectors & 2 showerhead injectors

Exhaust - Primary + Secondary

Peak Horsepower - 185hp @10,600 rpm

Peak Torque - 101.6 ft-lbs @ 8,200 rpm (137.8 Nm @ 8,200 rpm)

Primary Drive - Gear Drive 36/65

Final Drive - 520 Z-ring chain, 16/41

Clutch - Hydraulic actuation, vacuum operated slipper

DIMENSIONS

Overall Length - 80.3in (2040mm)

Overall Width - 29.0in (737mm)

Overall Height - 43.7in (1110mm)

Seat Height - 32.5in (826mm)

Ground Clearance - 4.7in (120mm)

Weight - 419lbs (190kg)

Load Capacity - 375lbs (170kg)

TRANSMISSION RATIOS

1st - 2.46

2nd - 1.75

3rd - 1.38

4th - 1.17

5th - 1.04

6th - 0.96

CHASSIS

Frame - Aluminum Frame with integral fuel reservoir

Swingarm Front - Optimized stiffness aluminum

Suspension - Wilbers, inverted big piston front forks

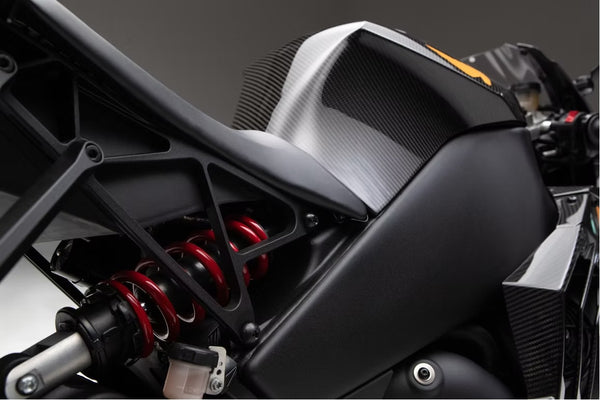

Rear Suspension - Showa, single shock without linkage

Front Wheel - 17 x 3.5 aluminum

Rear Wheel - 17 x 6.0 aluminum

Front Brake - 386mm (15.19in) single perimeter rotor, 8 piston inside-out caliper

Rear Brake - 220mm (8.66in) disc, 2-piston Hayes performance brakes caliper
